HTML: Difference Between Id And Name In Html

HTML: Difference Between Id And Name In Html
04:02 by Anjan Kant

INTRODUCTION

Web development is a very vast topic as it covers a lot of materials, and even sometimes professional web developers cannot remember all of it.
Here we will be discussing the difference between name attribute and ID attribute in HTML.
Difference Between Id And Name In Html

NAME ATTRIBUTE

Name attribute in HTML indicates the name of an <input> element. The Name attribute is used to reference form data after a form is submitted or to reference elements in JavaScript. The name attribute is used for posting or sending data in a form submission in DOM (document object model).

ID ATTRIBUTE

ID attribute indicates a unique ID for HTML element. The ID attribute is mostly used in CSS, and by JavaScript who controls the element with the unique ID. The ID of a form has nothing to do with the data and information contained in it.
Both name attribute and ID attribute appear to have same purpose that of giving an identifier. The distinction is a name attribute exchanges transfers program to server and can be different in relation to the ID. ID is relied upon to be unique within the page.

CONCLUSION

Name and ID vary because the server is expecting the similar name from various forms in the similar document. The ID must be unique, the name most certainly not.

Suggested Reading

Key Relationships: Understanding The Relationships in SQL Server

Key Relationships: Understanding The Relationships in SQL Server
01:29 by Anjan Kant

Introduction
A web application is a client-server software application in which the user interface runs in a web browser.Modern web applications today interact with databases , usually with a language called SQL. SQL (Structure Query Language) is a language designed for interacting with relational database management systems (RDBMS) like SQL Server, MySQL, Oracle, Sq Lite etc. In my earlier article, I explained about how to fix SQL network error 26.

What is THE RELATIONAL MODEL?

The Relational database management systems are based on relational model. The relational model for database management is an approach to managing data using a structure and language consistent with first-order predicate logic. It is a prescription for how to represent and manipulate data. The purpose of the relational model is to provide a declarative method for specifying data and queries: users directly state what information the database contains and what information they want from it, and allow database management software ensure that it describes data structures for storing the data and retrieval procedures for answering queries.
Most relational databases use the SQL data definition and query language; these systems implement what can be regarded as an engineering approximation to the relational model. A table in an SQL database scheme corresponds to a predicate variable; the contents of a table to a relation; key constraints, other constraints, and SQL queries correspond to predicates.
Database designs are closely associated with database relationships, the association among two columns in a single or more tables.In SQL server, these relationships are defined using Primary Key-Foreign Key constraints. A link is created between two tables where the primary key of one table is associated with the foreign key of another table using database relationships.Now you must be wondering what is the key? Well Key is a set of one or more columns whose combined values are unique among all occurrences in a given table. A key is the relational means of specifying uniqueness.

What are the different types of relationships in SQL?

  • One-to-One
  • One-to-Many
  • Many-to-Many

One-to-One Relationships

This is relationship between the primary and foreign keys relationships with primary key relating to foreign key only one record. A One-to-One relationship means that we have two tables that have a relationship, but that relationship only exists in such a way that any given row from Table A can have at most one matching row in Table B.
A real world example of this could be the relationship between a person and a drivers license. A person cannot have more than one driving licence and in reverse a licence cannot be owned by more than one person. This is a one-to-one relationship. Other examples could be: Person-to-mailing address , school-to-principal , person-to-passport,etc. It is called one-to-one because you can have only one record pointing to one other record.
one-to-one relationship
A generic example of a one-to-one relationship.

One-to-Many Relationships

This is the most commonly used type of relationship.This is also relationship between primary & foreign keys relationships but here primary key relating to multiple records.The One-to-Many relationship is defined as a relationship between two tables where a row from one table can have multiple matching rows in another table.
The common example of a one to many relationship is when we're talking about Users and Addresses. A User can have one or more addresses (mailing and billing address).The key here is that any one address can only belong to one user and only one user.
A one-to-many relationship
A one-to-many relationship from the perspective of TABLE B

Many-to-Many Relationships

In a Many-to-Many relationship, a record in Table B can potentially belong to several records in Table A. And vice versa, a record in Table A can potentially belong to several records in Table B. A simple many-to-many relationship includes two dimensions.
The many-to-many database relationship is used when the rows in the first table can map to multiple rows in the second table and those rows in the second table can also map to multiple different rows in the first table.

Common examples of Many-to-Many include:

  • Doctors have many patients; patients have many doctors.
  • Customers have many bank accounts; bank accounts might belong to more than one customer.
  • Students are enrolled in many courses; each course has many students.

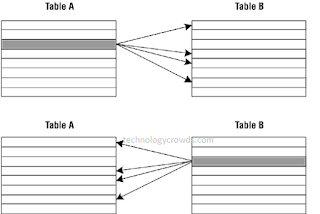

many-to-many relationship
A typical example of a many-to-many relationship

Conclusion

There are, without a doubt, any number of ways in which you can relate the tables in these examples , depending on each table's role within a given database. The manner in which we use the examples here is not important; But the technique we use establish the relationship between these tables is. Once we learn these techniques, we can identify and establish relationships between the tables .

Relevant Reading

Sunday

Error: CS1617: Invalid option 6 for langversion

Error: CS1617: Invalid option 6 for langversion
00:39 by Anjan Kant

Introduction

I was upgrading my MVC app from MVC 4 to MVC 5 in visual studio 2013 then eventually got message CS1617: Invalid option '6' for /langversion. I looked into issue very closely and then finally come up with the right solution. I am sharing the resolution with you all as given below. In my earlier article, I discussed also How to implement custom error pages using MVC application using Visual Studio.
Error CS1617 Invalid option 6 for langversion

Error Description

Error: CS1617: Invalid option '6' for /langversion; must be ISO-1, ISO-2, 3, 4, 5 or Default

Resolution

I have just added langversion:5 in my application web.config, it was earlier langversion:6 and it resolved my issue. You just need to lookup into system.codedom and modify compilerOptions attribute from langversion:6 to langversion:5 and modify it accordingly. I have provided web.config code part needed to change as below:












Conclusion

While we are working on real time world application then we need to upgrade/change our existing application code to meet up real time challenge, sometimes changes can direct into new challenges. In the same way, today here, I have provided a resolution of error CS1617: Invalid option 6 for langversion.

Relevant Reading

Saturday

MVC Compression: How to use GZIP Compression in ASP.net MVC

MVC Compression: How to use GZIP Compression in ASP.net MVC
09:01 by Anjan Kant

Introduction

GZIP compression can help to our website to reduce its bandwidth usage. In this article, we can incorporate GZIP feature in our MVC app. We can enable GZIP header through our website, alternatively we can also enable GZIP through our website IIS. Here describing, how to use GZIP compression in our ASP.net MVC app.

Already Discussed on ASP.Net MVC Security & Performance

Main benefits of GZIP compression are under below:

  • It helps to reduce sizes of our website pages.
  • It helps to increase speed of web pages.
  • It mounts to cost-benefit ratio high.

Namespace:

We need to add two namespaces before to write code of GZIP compression.

using System.Web.Mvc;
using System.IO.Compression;

Code of GZIP Compress under FilterConfig.cs

Write this code under FilterConfig.cs in App_Start folder of your MVC App.

public class CompressAttribute : ActionFilterAttribute
    {
        public override void OnActionExecuting(ActionExecutingContext filterContext)
        {

            var _encodingsAccepted = filterContext.HttpContext.Request.Headers["Accept-Encoding"];
            if (string.IsNullOrEmpty(_encodingsAccepted)) return;

            _encodingsAccepted = _encodingsAccepted.ToLowerInvariant();
            var _response = filterContext.HttpContext.Response;

            if (_encodingsAccepted.Contains("deflate"))
            {
                _response.AppendHeader("Content-encoding", "deflate");
                _response.Filter = new DeflateStream(_response.Filter, CompressionMode.Compress);
            }
            else if (_encodingsAccepted.Contains("gzip"))
            {
                _response.AppendHeader("Content-encoding", "gzip");
                _response.Filter = new GZipStream(_response.Filter, CompressionMode.Compress);
            }
        }
    }

Call Compress Attribute in MVC Controller

Now call Compress attribute on your controller action to get done this functionality in your MVC application.

Working Sample:

Here, I am showing statistics of my web page difference between zipped and unzipped webpage.

Unzip Webpage:

unzipped Webpage

Unzip Webpage

Requests 34
Size124 KB
Finish5.33s
DOContentLoaded617 ms
Load689 ms

Gzip Webpage:

Gzip Webpage
Gzip Webpage

Requests 34
Size123 KB
Finish1.36s
DOContentLoaded523 ms
Load582 ms

Finally, you can find difference between unzip and zip web pages. It is very required that your web pages should be Gzip enabled through IIS or visual studio project so that it will increase performance of your web pages in web browser (Chrome, IE, FF, Opera etc.). Here, I have explained how to use GZIP compression in ASP.net MVC app.

[Compress]
public ActionResult Index()
{
    /// write here your logic to pull data from database
    return View();
}

Conclusion

GZIP compression helps to our site pages and other resource files before sending them over to the program. This radically decreases exchange time since the documents are considerably littler. Here, I have explained how to use GZIP compression in asp.net MVC.

Monday

MVC Custom Error: How to implement custom error pages using MVC

MVC Custom Error: How to implement custom error pages using MVC
06:20 by Anjan Kant

Introduction

Custom Error pages can make your MVC application more elegant and informative. I often see many developers more struggles for hours to implement this functionality in ASP.Net MVC application. I’ll throw full light on all aspects how to implement MVC custom error pages. I have here demonstrated very common errors of MVC application as listed below:
  • Not Found: Whenever page is not founmd (MVC 404 Page).
  • Access Denied: Whenever we are trying to access folder (CAS Code Access Security) permissions or someone like same.
  • Internal Server Error: This error is related to internal server error.
  • Error Occurred: If any other error occurred in our MVC application.
MVC custom error page
MVC custom error page
You may conquers this example very easily, if once you go through also this example because it is extended from the earlier example. If you are already regular reader of Technology Crowds then it is OK.
You may also track Exception code and refer to custom page error in your ASP.Net MVC application.
Namespace Used:

using System.Web.Routing;

Add below code into Global.asax

You are required to add below code into Global.asax page on Application_Error page in your MVC application to get working custom error page.
protected void Application_Error(object sender, EventArgs e)
{
    var httpContext = ((MvcApplication)sender).Context;
    var currentController = " ";
    var currentAction = " ";
    var currentRouteData = RouteTable.Routes.GetRouteData(new HttpContextWrapper(httpContext));

    if (currentRouteData != null)
    {
    if (currentRouteData.Values["controller"] != null && !String.IsNullOrEmpty(currentRouteData.Values["controller"].ToString()))
        {
            currentController = currentRouteData.Values["controller"].ToString();
        }

        if (currentRouteData.Values["action"] != null && !String.IsNullOrEmpty(currentRouteData.Values["action"].ToString()))
        {
            currentAction = currentRouteData.Values["action"].ToString();
        }
    }

    var ex = Server.GetLastError();
    var controller = new ErrorController();
    var routeData = new RouteData();
    var action = "Index";

    if (ex is HttpException)
    {
        var httpEx = ex as HttpException;

        switch (httpEx.GetHttpCode())
        {
            case 404:
                action = "NotFound";
                break;

            case 401:
                action = "AccessDenied";
                break;

            case 500:
                action = "InternalServerError";
                break;
        }
    }

    httpContext.ClearError();
    httpContext.Response.Clear();
    httpContext.Response.StatusCode = ex is HttpException ? ((HttpException)ex).GetHttpCode() : 500;
    httpContext.Response.TrySkipIisCustomErrors = true;

    routeData.Values["controller"] = "Error";
    routeData.Values["action"] = action;

    controller.ViewData.Model = new HandleErrorInfo(ex, currentController, currentAction);
    ((IController)controller).Execute(new RequestContext(new HttpContextWrapper(httpContext), routeData));
}

Error Controller Actions

Here are written controller actions list like Index, NotFound, AccessDenied, InternalServerError etc.
public class ErrorController : Controller
{
    ///     /// Track Common Page Error
    ///     ///
    [HttpGet]
    public ActionResult Index()
    {
        TempData["error"] = "Error Occurred!";
    return View();
    }
    ///     /// Track Page Not Found Error
    ///
    ///
    [HttpGet]
    public ActionResult NotFound()
    {
        TempData["error"] = "Page not Found";
        return View();
    }
    ///
    /// Track Access Denied
    ///     ///
    [HttpGet]
    public ActionResult AccessDenied()
    {
        TempData["error"] = "Access Denied";
        return View("Index");
    }

    ///     /// Track Internal Server Error
    ///     ///
    [HttpGet]
    public ActionResult InternalServerError()
    {
        TempData["error"] = "Internal Server Error";
        return View("Index");
    }
}

Custom Error Razor Views

Below is completely provided code snippet of Razor view engine to display custom error pages to end user. Razor views will remain same to all custom error pages like IndexNotFoundAccessDeniedInternalServerError etc.

@{
    ViewBag.Title = @TempData["error"];
    Layout = null;
}

Error:

@TempData["error"]

Error Description:

@Model.Exception.Message.ToString() @Html.Raw(" ") @Model.ControllerName @Html.Raw(" ") @Model.ActionName

MVC custom error pages

Conclusion

To standardise your ASP.net MVC application, we are all required to customise error pages and show on a particular page with detailed error to make more trustworthy your website in to your online audience. Here, I have lined up all aspects of how to implement custom error pages using MVC application with attached working sample project to setup on your machine to see how it happen in really.

Download Complete Project (visual studio source files)
Download

Saturday

MVC: Sorting Filter in AngularJS using MVC

MVC: Sorting Filter in AngularJS using MVC
03:32 by Anjan Kant

Introduction

I am here fully explaining how to sorting filtering in AngularJS using MVC application. In my recent article, I have already demonstrated Live Character Count using AngularJS

Sorting Filter in AngularJS using MVC

Thursday

AngularJS: Live Character Count using AngularJS

AngularJS: Live Character Count using AngularJS
05:15 by Anjan Kant

Introduction

In my earlier article. I have explained all awesome features of AngularJS MVW Framework, now taking over next steps. Here, I am showing how we can live count of text area characters in AngularJS. Revising again main features of AngularJS.
Live Character Count using AngularJS

Tuesday

Fix SQL error: 26 - A network-related error occurred in SQL Server

Fix SQL error: 26 - A network-related error occurred in SQL Server
08:24 by Anjan Kant

Introduction

This article explains how to configure an instance of the SQL Server Database Engine to listen on a particular fixed port by utilising the SQL Server Configuration Manager to fix SQL error 26. In my earlier article, I have thoroughly highlighted how to get database tables size in SQL Server. The default example of the SQL Server Database Engine responses (listens) especially on TCP port 1433. Named instances of the Database Engine and SQL Server Compact are arranged for dynamic ports. This implies they select an accessible port when the SQL Server administration is started over. When you are interacting with a named instance through a firewall, configure the Database Engine to listen on a particular port, so that the fitting port can be opened in the firewall.

Friday

Know About Transparent Data Encryption (TDE) in SQL Server

Know About Transparent Data Encryption (TDE) in SQL Server
01:59 by Daniel Jones

Introduction

The basic purpose of encryption feature ensures the confidentiality of any digital data stored on a system. Also, the data, which is transmitted through the internet or via network of another computer. Encryption brings data in such a state that it becomes very difficult to read or analyse it. It is not possible for a user to access the encrypted data without access to decryption key/password/certificates. In the following section we will learn what is transparent data encryption (TDE) in SQL Server, the method to enable TDE and also, its advantage and disadvantages.

What Is Transparent Data Encryption

SQL Server has various built-in technologies for data protection, and one of the most essential is Transparent Data Encryption. This feature is introduced in SQL Server 2008 and present in all the later versions for bulk encryption at the database file level, which includes logs, data and backup file. Moreover, to fulfil the demands of corporate data security standards, SQL Server provides the option to enable TDE on the database level or at column/cell level. This feature is completely transparent to your application. Users can even use file level encryption, which is provided by Windows for database files. In the following section we will discuss the method to enable Transparent Data Encryption along with the advantage and disadvantages of TDE.

How To Enable Transparent Data Encryption

These are the mentioned steps you need to perform to enable TDE on a database. You can follow these steps only if, you have the permission to create a database master key and certificates in the master database and also, control permissions on the user database.
  • Firstly, you need to create a master key: It is a very symmetrical to the key that is used to create certificates and also, asymmetric keys.
  • Then, obtain or create a certificate protected by the master key: Certificates can be used for the encryption of data directly or to create symmetric keys to encrypt the database.
  • Generate a key of database encryption for the protection by the certificate.
  • Next, set the database to use encryption: Encryption, for tempdb data, is automatically enabled once you enable TDE on any of the user database. This results in the prevention of temporary objects (used by the user database) from leaking to disk unencrypted via tempdb database. System databases other than tempdb cannot currently be encrypted by using TDE.

Transparent Data Encryption (TDE) in SQL Server

It’s very essential to take backup of the keys and certificates. This restores the encrypted database on another instance of SQL Server after restoring the keys or certificates there.
Whenever you try to use a certificate without taking a backup of it, SQL Server gives a warning like this:

The certificate used for encrypting the database encrption key has not been backed up

Pros And Cons Of Transparent Data Encryption

Pros
  • Quite simple to implement.
  • No modification is needed for the application tier.
  • Is invisible to the user.
  • Works with high availability features, such as mirroring, AlwaysOn and log shipping.
Cons
  • Overall database is encrypted not only the data, which is sensitive.
  • There is a small performance impact.
  • File Stream data is not encrypted.
  • Data, which is in motion or held within the application is not encrypted

Conclusion

After considering the need of encryption we have discussed the Transparent data encryption (TDE), which is a feature of SQL Server. We have gone through the process to enable TDE in SQL Server. We have also learned about the advantages and disadvantages of TDE. This article provides a deep understanding of Transparent data encryption in SQL.

Suggested Reading

Thursday

URL Access: How to Prevent Direct URL Access In MVC

URL Access: How to Prevent Direct URL Access In MVC
08:54 by Anjan Kant

Introduction

Here is writing another article to make more secure of your MVC application. I’ll explore all aspects here, how to prevent direct URL access in MVC application. Before to go through this article, you are required to detail about these articles as given below.
  1. Asp.net mvc session management example
  2. Prevent Cross-Site Request Forgery using AntiForgeryToken() in MVC

Namespace Used

To apply this feature into your MVC application is used System.Web.Routing namespace to prevent direct URL access in MVC.
How to Prevent Direct URL Access In MVC

using System.Web.Routing

Apply this feature in FilterConfig.cs file

We have to call this feature under OnActionExecuting of Action filter. We have to apply filter as below written lines to prevent direct URL access in MVC. If we are tempering URL in browser then it will forcibly throw you to Logout action of Home Controller lying under Main area.

[AttributeUsage(AttributeTargets.Class | AttributeTargets.Method)]
public class NoDirectAccessAttribute : ActionFilterAttribute
{
    public override void OnActionExecuting(ActionExecutingContext filterContext)
    {
        if (filterContext.HttpContext.Request.UrlReferrer == null ||
 filterContext.HttpContext.Request.Url.Host != filterContext.HttpContext.Request.UrlReferrer.Host)
        {
     filterContext.Result = new RedirectToRouteResult(new
                               RouteValueDictionary(new { controller = "Home", action = "Logout", area = "Main" }));
        }
    }
}

Prevent Direct Access to Class (Apply on Controller Class)

We can apply NoDirectAccess Attribute to Class and it will follow to all containing methods, if any methods accessed directly under the whole controller. It will throw you specified action (here’s throwing Logout action) like MyWebsiteURL.com/Main/PersonalDetail/Index

[NoDirectAccess]
public class PersonalDetailController : Controller
{
      //
      // GET: /Main/PersonalDetail/
      public ActionResult Index()
      {
          return View();
      }
}

Apply NoDirectAccess Attribute to Action

Alternatively, we can apply NoDirectAccess Attribute to specific Action rather than to whole Controller class. Suppose, we are accessing directly like MyWebsiteURL.com/Main/Home/login

[NoDirectAccess]
public ActionResult Login()
{
   return View();
}

Conclusion

I have here demonstrated all necessary steps to prevent direct URL access in MVC to make our MVC application more secured and robust over internet. These are the healthy features to make our MVC application more reliable across the internet.

Tuesday

MVC Session: Asp.net mvc session management example

MVC Session: Asp.net mvc session management example
08:02 by Anjan Kant

Introduction

In this example, showing how to use and validate session (HttpContext.Current.Session) in MVC application. In my earlier article, one of more secured feature to keep up your website healthy cross-site request forgery explained. MVC application has provided us facility to apply filter like
  1.  Authorization
  2.  Action Filter
  3.  Result Filter
  4.  On Error Filter
I am here applying OnActionExecuting filter helps us to manage ASP.net MVC session management whether session is preserving or not, if session is expired, it will not let you access your authorised area and throw away to login area or someone page.
Asp.net mvc session management example

Add below code in FilterConfig.cs under App_Start folder

This code is written under OnActionExecuting in FilterConfig.cs file
public class UserSessionActionFilter : ActionFilterAttribute, IActionFilter
{
    public override void OnActionExecuting(ActionExecutingContext filterContextORG)
    {
        HttpContext ctx = HttpContext.Current;
        if (HttpContext.Current.Session["User"] == null)
        {
            /// this handles session when data is requested through Ajax json
            if (filterContextORG.HttpContext.Request.IsAjaxRequest())
            {
                JsonResult result = new JsonResult { Data = "Session Timeout!" };
                filterContextORG.Result = result;
            }
            else
            {
                /// If session is expired then redirected to logout page which further redirect to login page.
            filterContextORG.Result = new RedirectResult("~/Main/Home/Logout");
                return;
            }
        }
}

In Global.asax Should register FilterConfig.cs

protected void Application_Start()
{
 AreaRegistration.RegisterAllAreas();
 WebApiConfig.Register(GlobalConfiguration.Configuration);
 FilterConfig.RegisterGlobalFilters(GlobalFilters.Filters);
 RouteConfig.RegisterRoutes(RouteTable.Routes);
}

Checking Session is expired or not

We have to call action attribute [UserSessionActionFilter] in MVC controller to check whether session is preserving or not. If session is expired it will throw to other page.
[UserSessionActionFilter]
public ActionResult ContactDetail()
{
 return View();
}

Conclusion

This example is showing how to handle session in ASP.net MVC application. This example helps us to asp.net MVC session management example with all required steps.

Suggested Reading
